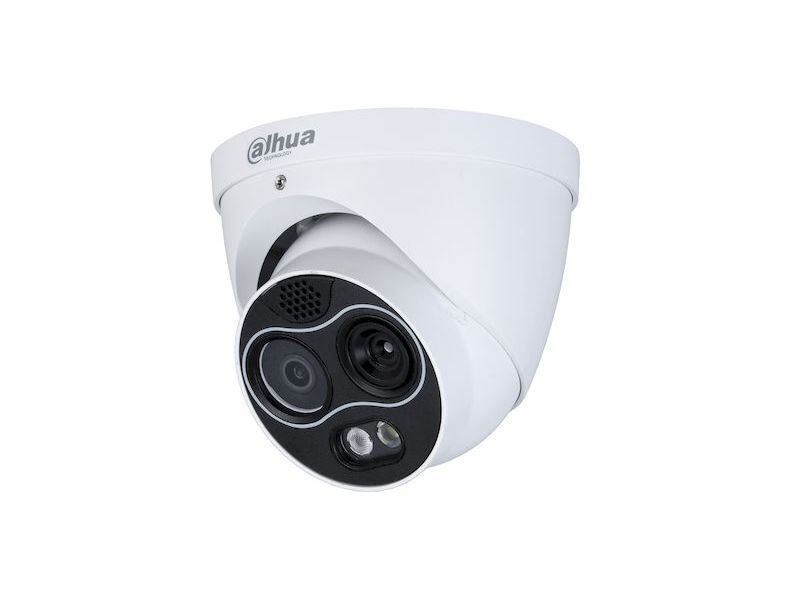

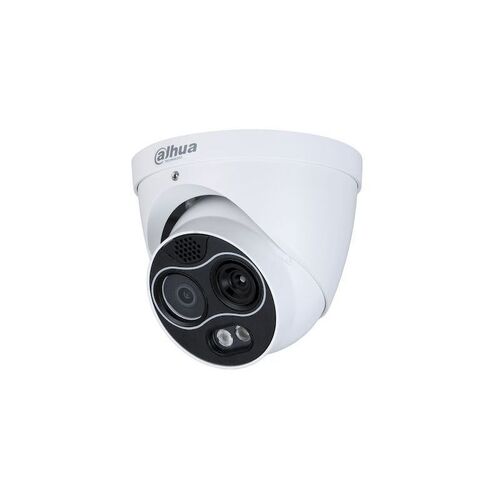

DAHUA DHI-TPC-DF1241-TB3F4-DW-S2 WIZSENSE DF1241-T THERMAL T SERIES 4MP HYBRID TURRET CAMERA, FIXED 3.5MM
Model # DHI-TPC-DF1241-TB3F4-DW-S2
DAHUASKU: DHI-TPC-DF1241-TB3F4
TPC-DF1241-T-S2
Thermal Network Mini Hybrid Eyeball Camera
>Â Vanadium oxide uncooled focal plane detector.Â
>Â 4Megapixel progressive scan CMOS.Â
>Â AI functions: heat detection, tripwire, human/vehicle classification, smoking detection, and call detection.Â
> Temperature measurement range of â20 °C to +550 °C.Â
>Â Flexible rules and alarms.Â
>Â Remote auxiliary management.Â
>Â Dual image fusion (visible and thermal channels).Â
> Wide input voltage 12 VDC ± 20%, and PoE.Â
>Â IP67 rated.
| Thermal | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Detector Type | Vanadium oxide uncooled focal plane detector | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. Resolution | 256 (H) Ã 192 (V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Pixel Pitch | 12 μm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Spectral Range | 8 μmâ14 μm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Thermal Sensitivity (NETD) | < 40 mK (@f/1.0, 25 Hz, 300 K) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Field of View | 2 mm: H: 87.8°; V: 63.8° 3.5 mm: H: 50.6°; V: 37.8° 7 mm: H: 24°; V: 18° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Close Focus Distance | 2mm: 0.3 m (0.98 ft) 3.5 mm: 0.5 m (1.64 ft) 7 mm: 1 m (3.28 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Detection Distanceâ | 2 mm: Vehicle: 256 m (841.24 ft); Human: 83 m (272 ft) 3.5 mm: Vehicle: 449 m (1,472.17 ft); Human: 146 m (479 ft) 7 mm: Vehicle: Vehicle: 897 m (2,944.34 ft); Human: 292 m (958 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Recognition Distanceâ¡ | 2 mm: Vehicle: 63 m (206.34 ft); Human: 21 m (69 ft) 3.5 mm: Vehicle: 110 m (361.10 ft); Human: 38 m (125 ft) 7 mm: Vehicle: 220 m (722.20 ft); Human: 75 m (246 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Identification Distance⢠| 2 mm: Vehicle: 32 m (104.15 ft); Human: 11 m (36 ft) 3.5 mm: Vehicle: 56 m (182.27 ft); Human: 19 m (622 ft) 7 mm: Vehicle: 111 m (364.54 ft); Human: 38 m (125 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Note: â Detection Distance: Detects objects, but cannot recognize their characteristics (objects must cover more than 3.6 pixels of the image). â¡Recognition Distance: Classifies objects into general categories, such as human, vehicle (the object must cover more than 14 pixels of the image). â¢Identification Distance: Classifies objects into specific categories based on their characteristics, such as engineering truck, car (the object must cover more than 28 pixels of the image). | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Aperture | F1.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Digital Detail | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Digital Zoom | 16 levels | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| AGC | Auto; Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Noise Reduction | 2D NR; 3D NR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Image Flip | 90°; 180°; 270° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Color Palettes | 18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Fusion Mode | 3 (Warm color; Cool color; Ironred) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Visible | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Image Sensor | 1/2.7'' CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. Resolution | 2336 (H) Ã 1752 (V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Pixel | 4 MP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Electronic Shutter Speed | 1/30,000 sâ1 s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Min. Illumination | Color: 0.05 lux Black & white: 0.005 lux 0 lux (IR on) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| IR Illumination Distance | 30 m (98.43 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| IR Illuminator On/Off Control | Auto; Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Aperture | 2 mm: F2.2 4 mm: F1.6 8 mm: F2.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Field of View | 2 mm: H: 94°; V: 72° 4 mm: H: 71.2°; V: 52° 8 mm: H: 33.4°; V: 25° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Focus Control | Fixed | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Close Focus Distance | 2 mm: 0.3 m (0.98 ft) 4 mm: 1 m (3.28 ft) 8 mm: 2.5 m (8.2 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Day/Night | Auto (ICR); Color; B/W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| BLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| WDR | DWDR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| HLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| White Balance | Auto; Manual; Indoor; Outdoor; Tracking; Street lamp; Natural | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| AGC | Auto; Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Noise Reduction | 2D NR; 3D NR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| S/N Ratio | â¥55 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Region of Interest (RoI) | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Image Flip | 90°; 180°; 270° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Exposure Compensation | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Intelligence | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| General Intelligence | Tripwire; Intrusion | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Advanced Intelligence | Heat Detection & Alarm Smoking Detection Call Detection | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Temperature Measurement | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Temperature Range | Low Temperature Mode: â20 °C to +150 °C (â4 °F to +302 °F) High Temperature Mode: 0 °C to +550 °C (+32 °F to +1022 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Temperature Accuracy | Max (± 2 °C, ± 2%) Operating Temperature: â20 °C to +50 °C (â4 °F to +122 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Temperature Mode | Spot: 12 Line: 12 Area: 12 Support 12 rules simultaneously | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video and Audio | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Compression | H.265; H.264; H.264H; MJPEG | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Resolution | Thermal: Main Stream: 1280 Ã 960 (1.3M); XVGA (1024 Ã 768); VGA (640 Ã 480); 256 Ã 192; 1280 Ã 960 (by default) Sub Stream: VGA (640 Ã 480); 256 Ã 192; 256 Ã 192 (by default) Visual: Main Stream: 2336 Ã 1752; 1080p (1920 Ã 1080); 720p (1280 Ã 720); D1 (704 Ã 576); 2336 Ã 1752 (by default)Sub Stream: 720p (1280 Ã 720); D1 (704 Ã 576); CIF (352 Ã 288); 352 Ã 288 (by default) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Frame Rate | Thermal 50 Hz: (main stream) 1 fpsâ25 fps adjustable, 25 fps by default; (sub stream) 1 fpsâ25 fps adjustable, 15 fps by default 60 Hz: (main stream) 1 fpsâ30 fps adjustable, 30 fps by default; (sub stream) 1 fpsâ30 fps adjustable, 15 fps by default Visual 50 Hz: (main stream) 1 fpsâ25 fps adjustable, 25 fps by default; (sub stream) 1 fpsâ25 fps adjustable, 15 fps by default 60 Hz: (main stream) 1 fpsâ30 fps adjustable, 30 fps by default; (sub stream) 1 fpsâ30 fps adjustable, 15 fps by default | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Compression | G.711a; G.711mu; PCM | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Protocol | HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Edge Storage | Micro SD card (256 G) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Interoperability | ONVIF; CGI; DaHua SDK | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Browser | IE: IE 8 and later Google: 42 and earlier Firefox: 42 and earlier | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| User/Host | 10 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Security | Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Port | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network | 1 Ã RJ-45 (10/100 Base-T) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Input | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Output | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Input | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Output | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| RS-485 | 1 pair | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Supply | 12 VDC, 1.2 A ± 20%; PoE | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Consumption | Basic: <4.5 W (12 VDC, LED off); 4.8 W (PoE) Max: <10.1 W (12 VDC, LED on, heater on); 12.3 W (PoE) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Environment | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Temperature | â30 °C to +60 °C (â22 °F to +140 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage Temperature | â30 °C to +70 °C (â22 °F to ï¹¢158 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Humidity | â¤95% | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Protection | IP67 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Structure | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Product Dimensions | 122 mm à 122 mm à 112 mm (4.80" à 4.80" à 4.41") (L à W à H) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Packaging Dimensions | 155 mm à 155 mm à 135 mm (6.10" à 6.10" à 5.31") (L à W à H) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Net Weight | â¤0.85 kg (1.87 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gross Weight | â¤1 kg (2.20 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Heat Detection Distance | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Focal Length | Max. Distance | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 2 mm | 25 m (82.02 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 3.5 mm | 45 m (147.64 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 7 mm | 86 m (282.15 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Note: The table displays the measured distances obtai
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
