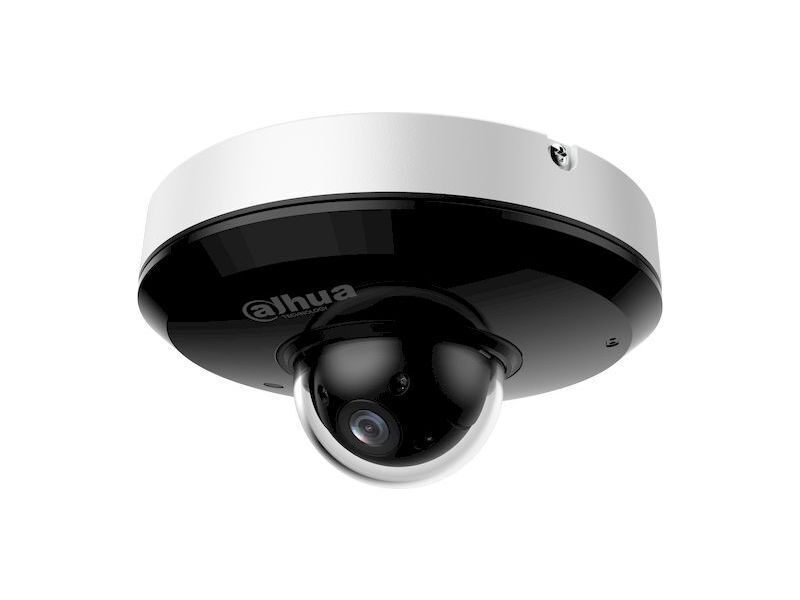

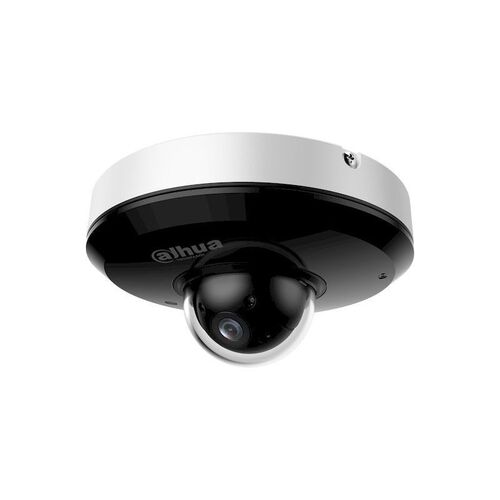

DAHUA DH-SD1A404DB-GNY 4MP PTZ,SD1A404DB,4X ZOOM,STARLIGHT IR AI WIZSENSE CAMERA
Model # DH-SD1A404DB-GNY
DAHUASKU: DH-SD1A404DB-GNY
SD1A404DB-GNY
4MP 4x Starlight IR WizSense Network PTZ Camera
>Â 1/2.8" 4Megapixel CMOS.Â
>Â 4x optical zoom.Â
>Â Starlight technology.Â
>Â Max. 25/30 fps@4MP.Â
>Â IR distance up to 20 m.Â
>Â Perimeter protection.Â
>Â Face detection.Â
>Â SMD 3.0.Â
>Â Built-in Mic.Â
>Â IP66; IK08.
| Camera | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Image Sensor | 1/2.8" CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Pixel | 4 MP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. Resolution | 2560 (H) Ã 1440 (V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ROM | 256 MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| RAM | 512 MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Electronic Shutter Speed | 1 sâ1/30,000 s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Scanning System | Progressive | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Min. Illumination | 0.005 lux@F1.8 (Color, 30 IRE); | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Illumination Distance | 20 m (65.62 ft) (IR) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Illuminator On/Off Control | Manual; SmartIR; Off | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Illuminator Number | 3 (IR light) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Lens | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Focal Length | 2.8 mmâ12 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. Aperture | F1.8âF2.7 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Field of View | H: 96.9°â31.6°; V: 51.4°â17.8°; D: 116.2°â36.4° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Optical Zoom | 4x | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Focus Control | Auto; semi-auto; manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Close Focus Distance | 0.2 mâ0.5 m (0.66 ftâ 1.64 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Iris Control | Fixed iris | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DORI Distance | Detect | Observe | Recognize | Identify | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 240 m (787.40 ft) | 94.8 m (311.02 ft) | 48 m (157.48 ft) | 24 m (78.74 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PTZ | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Pan/Tilt Range | Pan: 0° to 355°; | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Manual Control Speed | Pan: 0.1°/sâ70°/s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Preset Speed | Pan: 0.1°/sâ80°/s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Preset | 300 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Tour | 8 (up to 32 presets per tour) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power-off Memory | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Idle Motion | Preset; Tour | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PTZ Protocol | DH-SD | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Intelligence | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| IVS (Perimeter Protection) | Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; human alarm classification | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Face Detection | Supports face detection, snapshot, and face enhancement; Supports face cutout: Face, one-inch photo; Capturing strategies include real-time capturing and quality first. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| People Counting | Supports people counting, calculating the number of people in the area, and queue management. Only people counting supports the report function | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SMD | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Compression | H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG (Sub Stream); Smart H.264+ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Streaming Capability | 3 streams | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Resolution | 4M (2560 Ã 1440); 3M (2304 Ã 1296); 1080p (1920 Ã 1080); 1.3M (1280 Ã 960); 720p (1280 Ã 720); D1 (704 Ã 576/704 Ã 480); VGA (640 Ã 480); CIF (352 Ã 288/352 Ã 240) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Frame Rate | Main stream: 4M/3M/1080P/1.3M/720P@(1-25/30 fps) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Bit Rate Control | CBR/VBR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Bit Rate | H264: 96 Kbpsâ14,848 Kbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Day/Night | ICR: Color; B/W; Auto; | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| BLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| WDR | 120 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| HLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| White Balance | Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gain Control | Auto; manual; gain prio | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Noise Reduction | 2D NR; 3D NR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Motion Detection | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Region of Interest (RoI) | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Image Stabilization | Electronic Image Stabilization (EIS) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Defog | Electronic | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Digital Zoom | 16Ã | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Image Rotation | 180° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| S/N Ratio | â¥55 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Compression | PCM; G.711A; G.711MU; G.726; MPEG2-Layer2; G.722.1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network Port | RJ-45 (10/100 Base-T) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network Protocol | FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Interoperability | ONVIF (Profile S & Profile G & Profile T); CGI; SDK | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| User/Host | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SKU | DH-SD1A404DB-GNY | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Brand | Dahua | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
