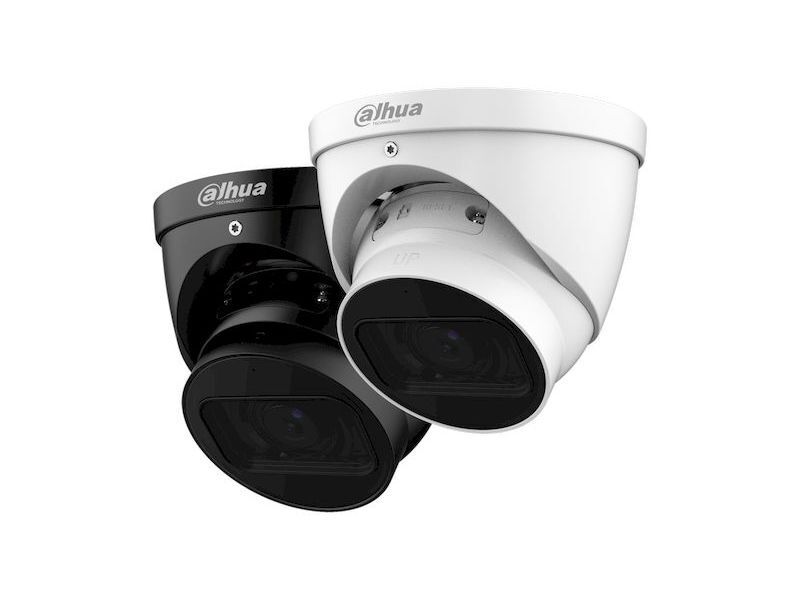

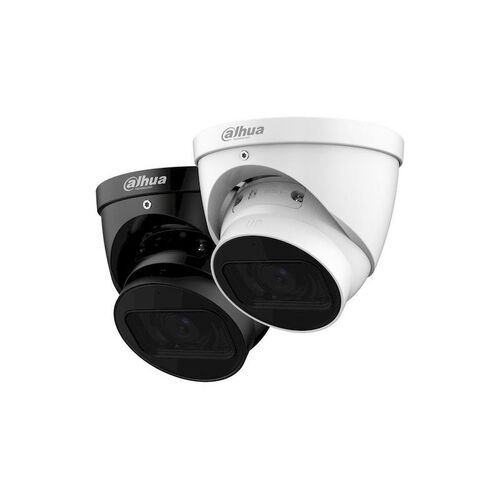

DAHUA DH-IPC-HDW5442TP-ZE-2712 WIZMIND HDW5442TP 4MP TURRET CAMERA, VARIFOCAL 2.7-12MM
Model # DH-IPC-HDW5442TP-ZE-2712
DAHUASKU: DH-IPC-HDW5442TP-ZE-2712
IPC-HDW5442T-ZE
4MP IR Vari-focal Eyeball WizMind Network Camera
* The parameters and datasheets below can only be applied to 5442- Z-S3 series.
>Â 4-MP 1/1.8" CMOS image sensor, low luminance, and high definition image.Â
> Outputs max. 4MP (2688Ã1520) @25/30 fps.Â
> Built-in IR LED, and the max. illumination distance is 40 m.Â
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.Â
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.Â
> With deep learning algorithm, it supports: video metadata, IVS, face detection, smart object detection, and people counting, etc.Â
> Supports max. 512 GB Micro SD card, built-in MIC.Â
> 12 VDC/PoE power supply; ePoE.Â
> IP67 protection.Â
> SMD 3.0.
| Camera | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Image Sensor | 1/1.8" CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. Resolution | 2688 (H) Ã 1520 (V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ROM | 4 GB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| RAM | 1 GB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Scanning System | Progressive | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Electronic Shutter Speed | Auto/Manual 1/3 sâ1/100,000 s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Min. Illumination | 0.0007 lux@F1.8 (Color, 30 IRE) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| S/N Ratio | >56 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Illumination Distance | Up to 40 m (131.23 ft) (IR) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Illuminator On/Off Control | Auto; Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Illuminator Number | 2 (IR LED) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Angle Adjustment | Pan: 0°â360° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Lens | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Lens Type | Motorized vari-focal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Lens Mount | Ï14 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Focal Length | 2.7 mmâ12 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. Aperture | F1.8 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Field of View | H: 115°â47°; V: 62°â27°; D: 137°â54° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Iris Control | Auto | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Close Focus Distance | 1.5 m (4.92 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DORI Distance | Lens | Detect | Observe | Recognize | Identify | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| W | 57.5 m (188.65 ft) | 23.0 m (75.46 ft) | 11.5 m (37.73 ft) | 5.8 m (19.03 ft) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| T | 130.8 m (429.13 ft) | 52.3 m (171.59 ft) | 26.2 m (85.96 ft) | 13.1 m (42.98 ft) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Intelligence | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| IVS (Perimeter Protection) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Smart Object Detection | Smart abandoned object; smart missing object | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SMD | SMD 3.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| AI SSA | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Face Detection | Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| People Counting | Tripwire people counting, generating and exporting report (day/week/month/year); people counting in area and queue management, generating and exporting report (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Heat Map | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Metadata | Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Smart Codec | Smart H.265+; Smart H.264+ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| AI Coding | AI H.265; AI H.264 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Frame Rate | Main stream: 2688 Ã 1520 (1 fpsâ25/30 fps) /1920 Ã 1080 (1 fpsâ50/60 fps) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Stream Capability | 4 streams | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Resolution | 4M (2688 Ã 1520); 3.6M (2560 Ã 1440); 3M (2048 Ã 1536); 3M (2304 Ã 1296); 1080p (1920 Ã 1080); 1.3M (1280 Ã 960); 720p (1280 Ã 720); D1 (704 Ã 576/704 Ã 480); VGA (640 Ã 480); CIF (352 Ã 288/352 Ã 240) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Bit Rate Control | CBR/VBR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Bit Rate | H.264: 32 kbpsâ16384 kbps; H.265: 12 kbpsâ11008 kbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Day/Night | Auto(ICR)/Color/B/W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| BLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| HLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| WDR | 140 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Scene Self-adaptation (SSA) | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gain Control | Auto | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Noise Reduction | 3D NR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Motion Detection | OFF/ON (4 areas, rectangular) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Region of Interest (RoI) | Yes (4 areas) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Image Stabilization | Electronic Image Stabilization (EIS) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Smart Illumination | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Defog | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 4M (2688 à 1520) resolution and lower) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mirror | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Privacy Masking | 8 areas | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| LDC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Built-in MIC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception; defocus detection | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network Port | RJ-45 (10/100 Enhancement Base-T) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SDK and API | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| User/Host | 20 (Total bandwidth: 80 M) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage | FTP; SFTP; Micro SD card (support max. 512 GB); NAS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Browser | IE: IE 9 and later Chrome: Chrome 102 and later Firefox: Firefox 88 and later | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Management Software | SmartPSS Lite; DSS; DMSS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mobile Client | iOS; Android | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Cyber Security | Configuration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Certification | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Certifications | CE-LVD: EN62368-1; | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Supply | 12 VDC/PoE (802.3af)/ePoE | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Dual Power Backup | When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Consumption | Basic: 3.5 W (1
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
