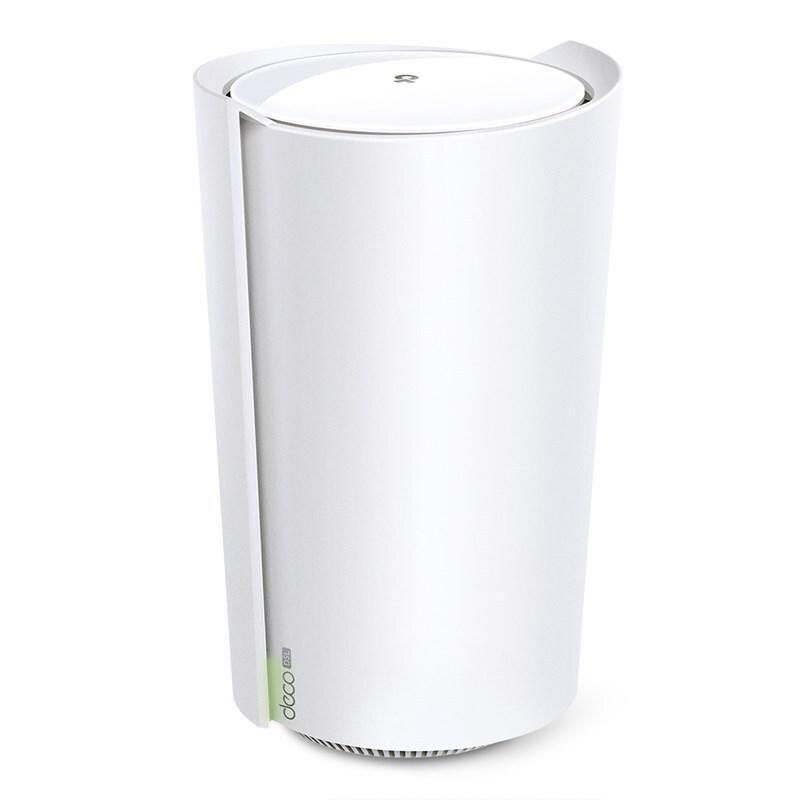

TP-Link Deco X73-DSL AX5400 VDSL2 Dual Band Whole Home Mesh Wi-Fi 6 Modem Router

TP-Link Deco X73-DSL AX5400 VDSL2 Dual Band Whole Home Mesh Wi-Fi 6 Modem Router

Model # Deco X73-DSL(1-pack)

TP-LINKSKU: Deco-X73-DSL-1-pack

$331.50

RRP $399.00
SAVE $67.50
In Stock

Deco-X73-DSL-1-pack

TP-Link Deco X73-DSL AX5400 VDSL2 Dual Band Whole Home Mesh Wi-Fi 6 Modem Router - 1-Pack

  • DSL Compatibility: ADSL, ADSL2, ADSL2+, VDSL2
  • Wi-Fi Speeds (Up to): AX5400, 5GHz: 4804 Mbps, 2.4GHz: 574 Mbps - Standards: 2.4GHz: ax/n/b/g, 5GHz: ax/ac/n/a
  • Antennas: 4x Internal with Beamforming
  • Supports: MU-MIMO, OFDMA & 4 Streams
  • I/O: 4x Gigabit WAN/LAN, 1x DSL Port, 1x USB-A 3.0, 2x FXS (Phone) ports



HARDWARE FEATURES
VDSL2 Standards ITU G.993.2, Up to 35b profile (POTS)
ITU-T G.993.5 (G.vector)
ITU-T G.998.4 (G.INP)
ADSL Standards Full-rate ANSI T1.413 Issue 2
ITU-T G.992.1(G.DMT)
ITU-T G.992.2(G.Lite)
ADSL2 Standards ITU-T G.992.3 (G.DMT.bis)
ADSL2+ Standards ITU-T G.992.5
WIRELESS
Standards Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds AX5400
5 GHz: 4804 Mbps (802.11ax)
2.4 GHz: 574 Mbps (802.11ax)
WiFi Range 1-3 Bedroom Houses (1-pack)
3-5 Bedroom Houses (2-pack)
4-7+ Bedroom Houses (3-pack)
TP-Link Mesh Technology
Optional Ethernet backhaul work together to link Deco units to provide seamless coverage

4× Antennas (Internal)
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity High
Dual-Band
Distribute devices to different bands for optimal performance

MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

OFDMA
Simultaneously communicates with multiple WiFi 6 clients

4 Streams
More than enough bandwidth for connected devices
Working Modes DSL (only on Deco X73-DSL)
Router
Access Point
HARDWARE
Processor Deco X73-DSL: 1.0 GHz Dual-Core CPU
Deco X73: 1.0 GHz Quad-Core CPU
Ethernet Ports 4× Gigabit Ports Per Deco X73-DSL Unit
2× Gigabit Ports Per Deco X73 Unit
*All support WAN/LAN auto-sensing
Buttons RESET Button
Ports and Connections 1 USB 3.0 port
1 * DSL port (RJ-11)
2 * FXS port (RJ-11)
4 * Gigabit RJ45 auto-sensing WAN/LAN

Compatibility
VDSL 2 / ADSL 2+ / ADSL 2 / ADSL
SECURITY
WiFi Encryption WPA-Personal
WPA2-Personal
WPA3-Personal
Network Security SPI Firewall
Access Control

HomeShield Security§
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner
Guest Network 1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
SOFTWARE
Protocols IPv4
IPv6
Service Kits HomeShield
Learn More>
WAN Types Dynamic IP
Static IP
PPPoE
L2TP
PPTP
*available on all units

PPPoA
IPoA
DS-Lite
*available on Deco X73-DSL
Quality of Service HomeShield QoS
QoS by Device
Cloud Service OTA Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding Port Forwarding
UPnP
IPTV IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP Address Reservation
DHCP Client List
Server
DDNS TP-Link
Management Deco App
PHYSICAL
Dimensions (W×D×H) Deco X73-DSL:
5.1 × 4.8 × 8.3in
(130 × 123 × 210.5 mm)

Deco X73:
4.33 × 4.33 × 4.99 in
(110 × 110 × 114 mm)
Package Contents 1-pack
1 Deco X73-DSL Unit
1 RJ45 Ethernet Cable
2 RJ11 DSL Cables
1 External DSL Splitter
1 Power Adapter
1 Telephony Feature Guide
Quick Installation Guide

2-pack
1 Deco X73-DSL Unit + 1 Deco X73 Unit
1 RJ45 Ethernet Cable
2 RJ11 DSL Cables
1 External DSL Splitter
2 Power Adapters
1 Telephony Feature Guide
Quick Installation Guide

3-pack
1 Deco X73-DSL Unit + 2 Deco X73 Units
1 RJ45 Ethernet Cable
2 RJ11 DSL Cables
1 External DSL Splitter
3 Power Adapters
1 Telephony Feature Guide
Quick Installation Guide
OTHERS
Certification Deco X73-DSL:
CE, RoHS, RCM

Deco X73:
CE, RoHS, RCM
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~60°C (-40 °F~140 °F)
Operating Humidity: 10%~90% RH
Storage Humidity: 5%~90% RH
TEST DATA
WiFi Transmission Power CE:
≤20 dBm (2.4GHz)
≤23 dBm (5GHz)

SKU Deco-X73-DSL-1-pack
Barcode # 845973080839
Brand TP-LINK
Shipping Weight 1.0000kg
