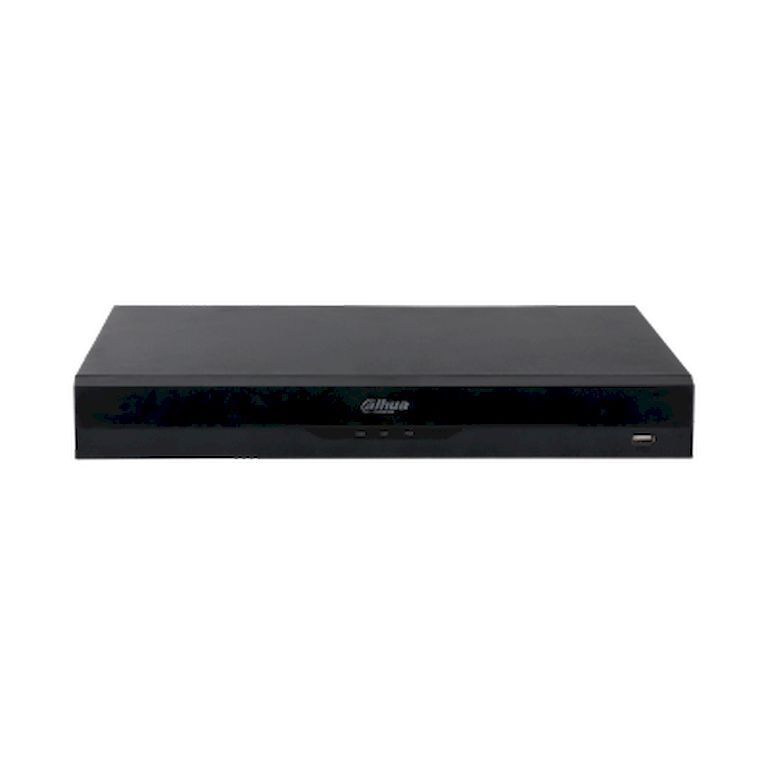

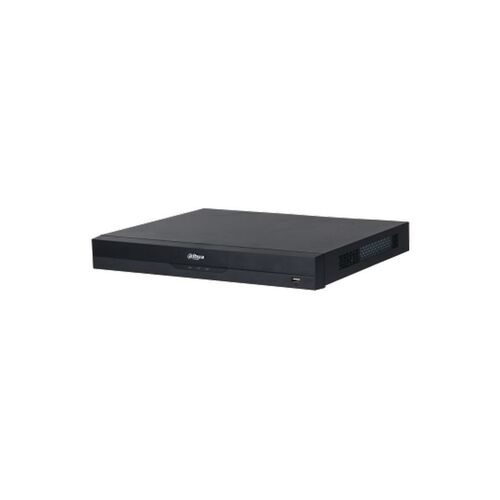

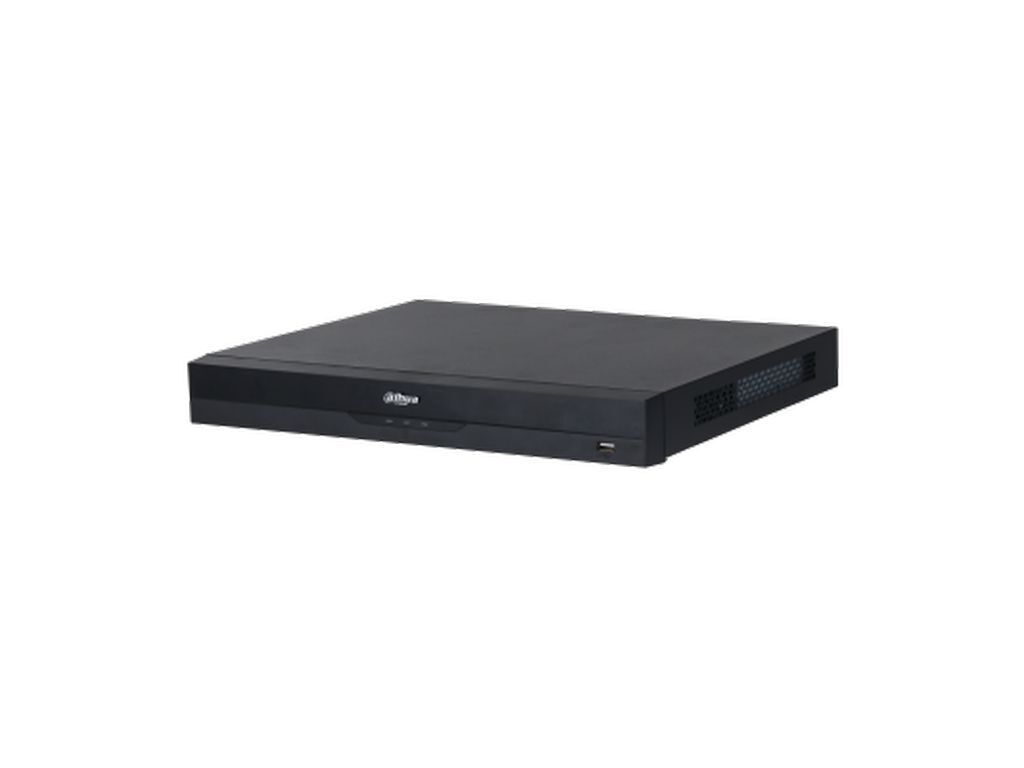

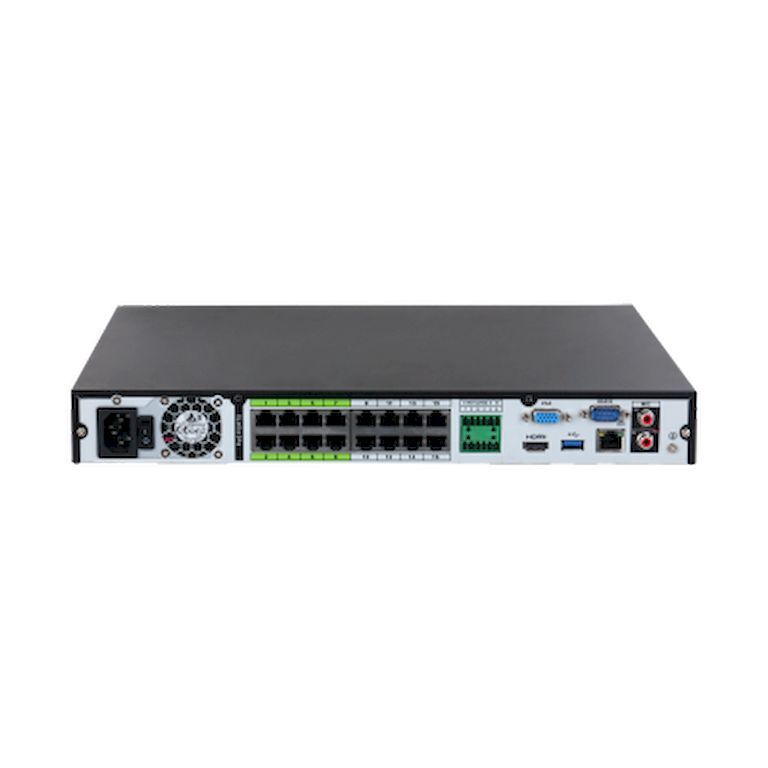

DAHUA DHI-NVR5216-16P-AI/ANZ WIZSENSE NVR5216-16P 16CH, 2XHDD, POE(16), 32MP RESOLUTION
Model # DHI-NVR5216-16P-AI/ANZ
DAHUASKU: DHI-NVR5216-16P-AI-ANZ
In Stock
NVR5216-16P-AI/ANZ
16 Channels 1U 16PoE 2HDD WizSense Network Video Recorder
> Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format.
> 32-channel 1080p self-adaptive decoding capability.
> Max. 384 Mbps incoming/recording/outgoing bandwidth.
> AI by recorder: 2-channel face detection and recognition, 4-channel perimeter protection, and 8-channel SMD Plus.
> AI by camera: Face detection and recognition, perimeter protection, SMD Plus, metadata, ANPR, and people counting.
> Security baseline 2.3.

| System | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Main Processor | Industrial-grade processor | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating System | Embedded Linux | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Interface | Web, Local GUI | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| AI | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| AI by Recorder | Face detection; face recognition; perimeter protection; SMD Plus | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| AI by Camera | Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Perimeter Protection | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Perimeter Performance AI by Recorder (Number of Channels) | 4 channels, 10 IVS rules for each channel | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Perimeter Performance of AI by Camera (Number of Channels) | 16 channels | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Face Detection | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Face Attributes | Gender; age group; glasses; expressions; face mask; beard | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Face Detection Performance of AI by Recorder (Number of Channels) | 2 channels (up to 12 face images/s each channel) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Face Detection Performance of AI by Camera (Number of Channels) | 16 channels | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Face Recognition | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Face Database Capacity | Up to 20 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Face Recognition Performance of AI by Recorder (Number of Channels) | 1. 16-channel FD (by camera) + FR (by recorder), image stream: 16 face images/s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Face Recognition Performance of AI by Camera (Number of Channels) | 16 channels | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SMD Plus | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SMD Plus by Recorder | 8 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SMD Plus by Camera | 16 channels | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Metadata | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Metadata Performance of AI by Camera (Number of Channels) | 8 channels | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Human Attributes | Top color, top type, bottom color, bottom type, hat, bag, age, gender and umbrella | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Motor Vehicle Attributes | License plate, plate color, vehicle body, vehicle model, vehicle logo, calling, seatbelt, vehicle interior, vehicle registration location. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Non-motor Vehicle Attributes | Vehicle model, vehicle color, number of persons, helmet. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Vehicle License Plate Comparison | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ANPR by Camera (Number of Channels) | 8 channels | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| License Plate Database Capacity | 1. Create up to 20,000 plate numbers. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio and Video | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Access Channel | 16 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network Bandwidth | AI disabled: 384 Mbps incoming, 384 Mbps recording and 384 Mbps outgoing | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Resolution | 32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 5 MP; 4 MP; 1080p; 720p; D1; CIF; QCIF | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Decoding Capability | AI disabled: 2-channel 32 MP@20 fps; 2-channel 24 MP@20 fps; 4-channel 16 MP@30 fps; 5-channel 12 MP@30 fps;8-channel 8 MP@30 fps; 12-channel 5 MP@30 fps;16-channel 4 MP@30 fps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Output | 1-channel VGA, 1-channel HDMI video output. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Multi-screen Display | Main screen: 1/4/8/9/16 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Third-party Camera Access | ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Compression Standard | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Compression | G.711a; G.711u; PCM; G726 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4/IPv6; RTSP; UDP; SNMP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; PPPoE; FTP; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mobile Phone Access | iOS; Android | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Interoperability | ONVIF 21.12(Profile T; Profile S; Profile G); CGI; SDK | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Browser | Chrome | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Recording Playback | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Multi-channel Playback | Up to 16 channels | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Record Mode | General, motion detection; intelligent; alarm; POS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Backup Method | USB device and network | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Playback Mode | Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Disk Group | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| General Alarm | Motion detection; privacy masking; local alarm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Anomaly Alarm | Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; abnormal behavior of fan; cybersecurity exception | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Intelligent Alarm | Face detection; perimeter protection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Linkage | Record; snapshot (panoramic); local alarm output; IPC external alarm output; access controller; audio; buzzer; log, preset; email | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Port | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Input | 1-channel RCA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Output | 1-channel RCA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Input | 4 channels | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Output | 2 channels | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| HDD Interface | 2 SATA ports, up to 16 TB. The maximum HDD capacity varies with environment temperature. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| RS-232 | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| RS-485 | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| USB | 2 (1 front USB 2.0 port, 1 rear USB 3.0 port) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| HDMI | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| VGA | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network Port | 1(10/100/1000 Mbps Ethernet port, RJ-45) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PoE Port | 16 ports, 10/100 Mbps, IEEE 802.3 af/at, 1-8 ports support ePoE | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| General | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Supply | 100â240 VAC, 47-63 Hz | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Consumption | Total output of NVR is ⤠10W (without HDD) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Net Weight | 2.66 kg (5.86 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gross Weight | 3.82 kg (8.42 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Product Dimensions | 375.0 mm à 329.3 mm x 53.0mm (14.76" à 12.96" à 2.09") (W à D à H) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Packaging Dimensions | 449.0 mm à 170.0 mm à 421.0 mm (17.68" à 6.69" à 16.57") (W à D à H) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Temperature | â10 °C to +55 °C (14 °F to +131 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage Temperature | â20 °C to +60 °C (â4 °F to +140 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Humidity | 10%â93% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SKU | DHI-NVR5216-16P-AI-ANZ |
| Brand | Dahua |
Manufacturer Warranty: 3 Years Manufacturer Warranty
