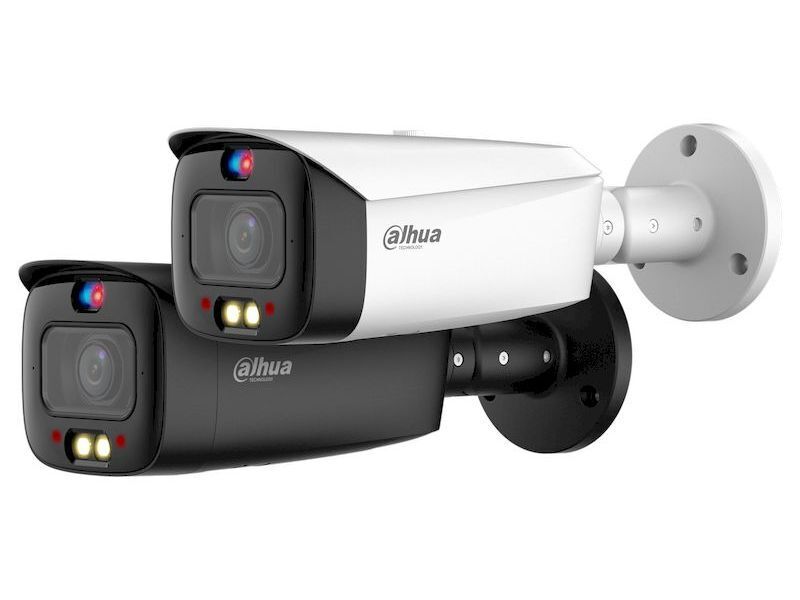

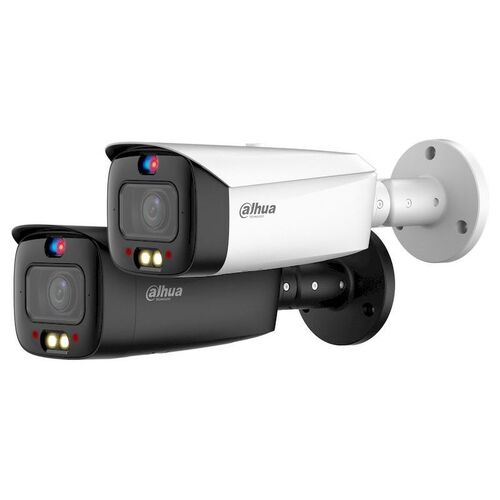

DAHUA DH-IPC-HFW3849T1-ZAS-PV WIZSENSE HFW3849T1 8MP TIOC 2.0 S4 BULLET CAMERA, VARI 2.7-13.5MM
Model # DH-IPC-HFW3849T1-ZAS-PV
DAHUASKU: DH-IPC-HFW3849T1-ZAS-PV
In Stock
IPC-HFW3849T1-ZAS-PV
8MP Smart Dual Light Active Deterrence Vari-focal Bullet WizSense Network Camera
> 8-MP 1/2.8" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840 à 2160) @25/30 fps. · H.265 codec, high compression rate, ultra-low bit rate.
> Built-in warm light and IR LED; the max. IR illumination distance is 50 m and warm light distance is 40 m.
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built-in dual MICs; 1-ch speaker; support two-way talk.
> 12 VDC/PoE power supply.
> IP67 protection.
> Sound and light alarm (red and blue lights).
> SMD 4.0.
> One-tap arming/disarming through alarm input.
| Camera | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Image Sensor | 1/2.8" CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. Resolution | 3840 (H) Ã 2160 (V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ROM | 256 MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| RAM | 2 GB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Scanning System | Progressive | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Electronic Shutter Speed | Auto/Manual 1/3 sâ1/100,000 s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Min. Illumination | 0.004 lux@F1.0 (Color, 30 IRE) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| S/N Ratio | >56 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Illumination Distance | Up to 50 m (164.64 ft) (IR) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Illuminator On/Off Control | Auto;Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Illuminator Number | 2 (IR LED) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Angle Adjustment | Pan: 0°â360° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Lens | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Lens Type | Motorized vari-focal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Lens Mount | Ï16 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Focal Length | 2.7 mmâ13.5 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. Aperture | F1.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Field of View | H: 108°â34° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Iris Control | Fixed | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Close Focus Distance | 1.5 m (4.92 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DORI Distance | Lens | Detect | Observe | Recognize | Identify | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| W | 89.9 m (294.95 ft) | 36.0 m (118.11 ft) | 18.0 m (59.06 ft) | 9.0 m (29.53 ft) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
| T | 257.4 m (844.49 ft) | 103.0 m (337.93 ft) | 51.5 m (168.96 ft) | 25.7 m (84.32 ft) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Intelligence | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SMD | SMD 4.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| AI SSA | Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by sub stream) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Smart Codec | Smart H.265+; Smart H.264+ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| AI Coding | AI H.265; AI H.264 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Frame Rate | Main stream: 3840 Ã 2160@(1 fpsâ25/30 fps) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Stream Capability | 3 streams | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Resolution | 8M (3840 Ã 2160); 6M (3072 Ã 2048); 5M (3072 Ã 1728/2592 Ã 1944); 4M (2688 Ã 1520/2560 Ã 1440); 3M (2048 Ã 1536/2304 Ã 1296); 1080p (1920 Ã 1080); 1.3M (1280 Ã 960); 720p (1280 Ã 720); D1 (704 Ã 576/704 Ã 480); VGA (640 Ã 480); CIF (352 Ã 288/352 Ã 240) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Bit Rate Control | CBR/VBR/ABR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Bit Rate | H.264:3 kbpsâ16384 kbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Day/Night | Auto(ICR)/Color/B/W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| BLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| HLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| WDR | 120 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Scene Self-adaptation (SSA) | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gain Control | Auto/Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Noise Reduction | 3D NR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Motion Detection | OFF/ON (4 areas, rectangular) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Region of Interest (RoI) | Yes (4 areas) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Image Stabilization | Electronic Image Stabilization (EIS) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Smart Illumination | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Defog | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 à 1520 resolution and lower) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mirror | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Privacy Masking | 4 areas | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Built-in MIC | Yes; built-in dual Mic | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Built-in Speaker | Yes; built-in speaker | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; defocus detection;external alarm; SMD; security exception | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network Port | RJ-45 (10/100 Base-T) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SDK and API | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Interoperability | ONVIF (Profile S; Profile G; Profile T); CGI | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| User/Host | 20 (Total bandwidth: 64 M) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage | FTP; SFTP; Micro SD card (support max. 512 GB); NAS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Browser | IE: IE 9/11 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Management Software | SmartPSS Lite; DSS; DMSS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mobile Client | iOS;Android | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Certification | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Certifications | CE-LVD: EN 62368-1; FCC: 47 CFR FCC Part 15, Subpart B | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Port | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Input | 1 channel (RCA port) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Output | 1 channel (RCA port) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Input | 1 channel in: wet contact, 5 mA 3â5 VDC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Output | 1 channel out: wet contact, 300 mA 12 VDC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Supply | 12 VDC/PoE (802.3af);12 VDC/PoE | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Consumption | Basic: 4.5 W (12 VDC); 5.8 W (PoE) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Environment | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Temperature | â30 °C to +60 °C (â22 °F to +140 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Humidity | â¤95% (RH), non-condensing | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage Temperature | â40 °C to +60 °C (â40 °F to +140 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage Humidity | â¤95% (RH), non-condensing | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SKU | DH-IPC-HFW3849T1-ZAS-PV | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Brand | Dahua | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
